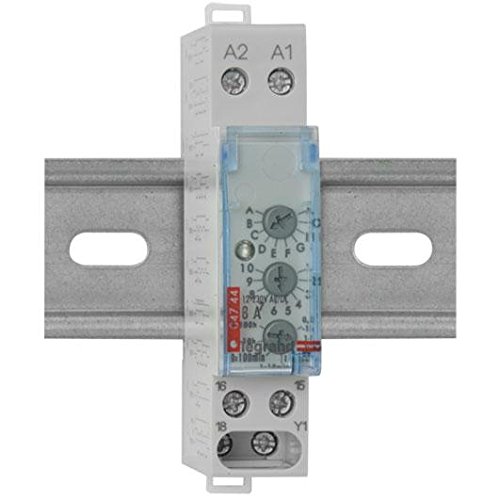

Legrand 004744 ZR MULTIFUNCTION


Price:
Sale price€77,55

Description

Legrand 004744 ZR MULTIFUNCTION


Product Overview

Legrand 004744 Time relay Rex analog multifunction Application: For small controls in which individual time functions are required. E.g. lighting, ventilation, control and regulation technology, automation, signaling systems,... Cover can be sealed Uniform Lexic housing Permissible voltage deviation ± 10 % UN Ambient temperature -20...+60° C Power consumption 2W Relative humidity 15..85 % no condensation Protection class 2 (protectively insulated) Repeat accuracy ± 0.2 % of setting value Setting accuracy ± 5 % at 25 ° C Minimum duty cycle of control contact 50 ms Recovery time max. 100 ms Switching frequency 10 to the power of 5 switching cycles at 2000 VA, 10 to the power of 7 switching cycles mechanical Max. permissible length of control cable: 20 m 1st time range unit seconds/hours 1st time range from/to 0.1...360000 Number of normally open contacts 0 Number of changeover switches 1 Number of normally closed contacts 0 Type of actuation analogue with multifunction Width in pitch units 1 Installation height 70 mm Frequency of control voltage 1 50...60 Hz Function Multifunction Mounting type DIN rail Rated switching current at 250 V AC 8 A Type of supply voltage AC Control voltage 1 12...230 V Type of control voltage 1 AC/DC Supply voltage range 250...250 V Technical data


Details

  • Product weight including packaging: 81.6 g
  • Model number: 004744
